Publishing to create a Sharable Link Available?
Yes this is is now available. Publishing a Capture creates a public link which will allow anyone with the link to view the capture. Toggle the Publish button and then anyone with the link can view the 3D Map and it's bookmarks and can export 3D data and take measurements. Annotations and saved measurements are not visible in the published link; you must be logged in with permissions to view the annotations or to save measurements.

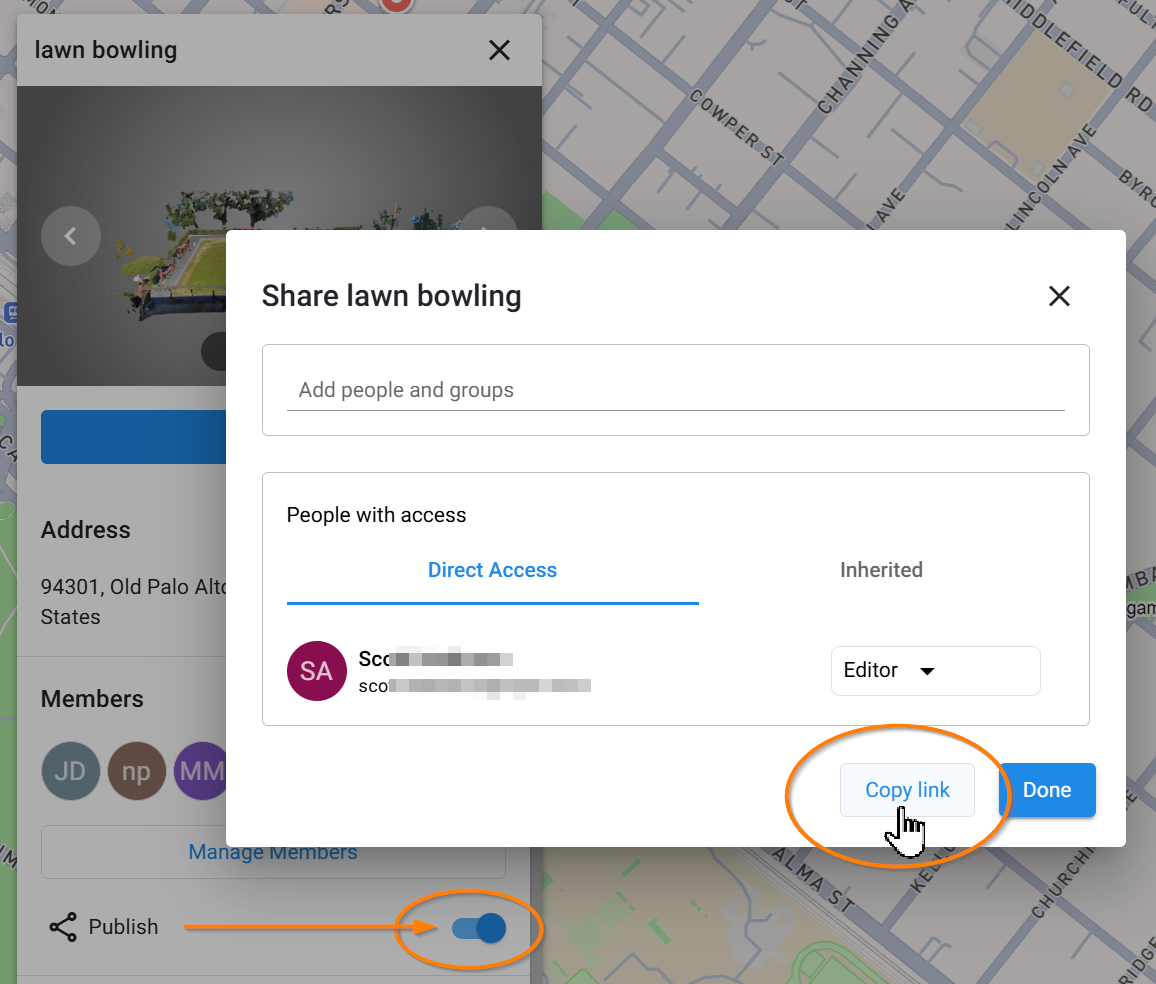

How to Publish a 3D Map Capture:

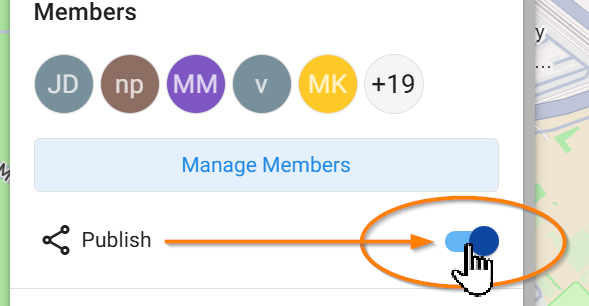

- Click on a Capture in the Project Center and Turn ON Publish.
- Click on Manage Members to Copy the Link
- Share the Link. Anyone with the link can access the 3D Map, export 3D data or take measurements.
Sample Published Link: https://samples.cupixvista.app/v2/sv/ve6pv5
Using Bookmarks with Publishing 3D Maps
You can share a URL to a bookmark and it will take a visitor directly to the view contained in the bookmark. Here is an example of three bookmarks of the same space.
Downtown - Bookmark to Opening - https://samples.cupixvista.app/v2/sv/76lhmh?bm=469l5d
Downtown - Bookmark to Bagels - https://samples.cupixvista.app/v2/sv/76lhmh?bm=emdscn
Downtown - Bookmark to Closing - https://samples.cupixvista.app/v2/sv/76lhmh?bm=k5m7s9
How to Un-Publish a Capture:
- Click on a Capture in the Project Center and Turn OFF Publish.
- The Published link will not longer work. Now, only Members of the Capture or the Project will be able to access the link.

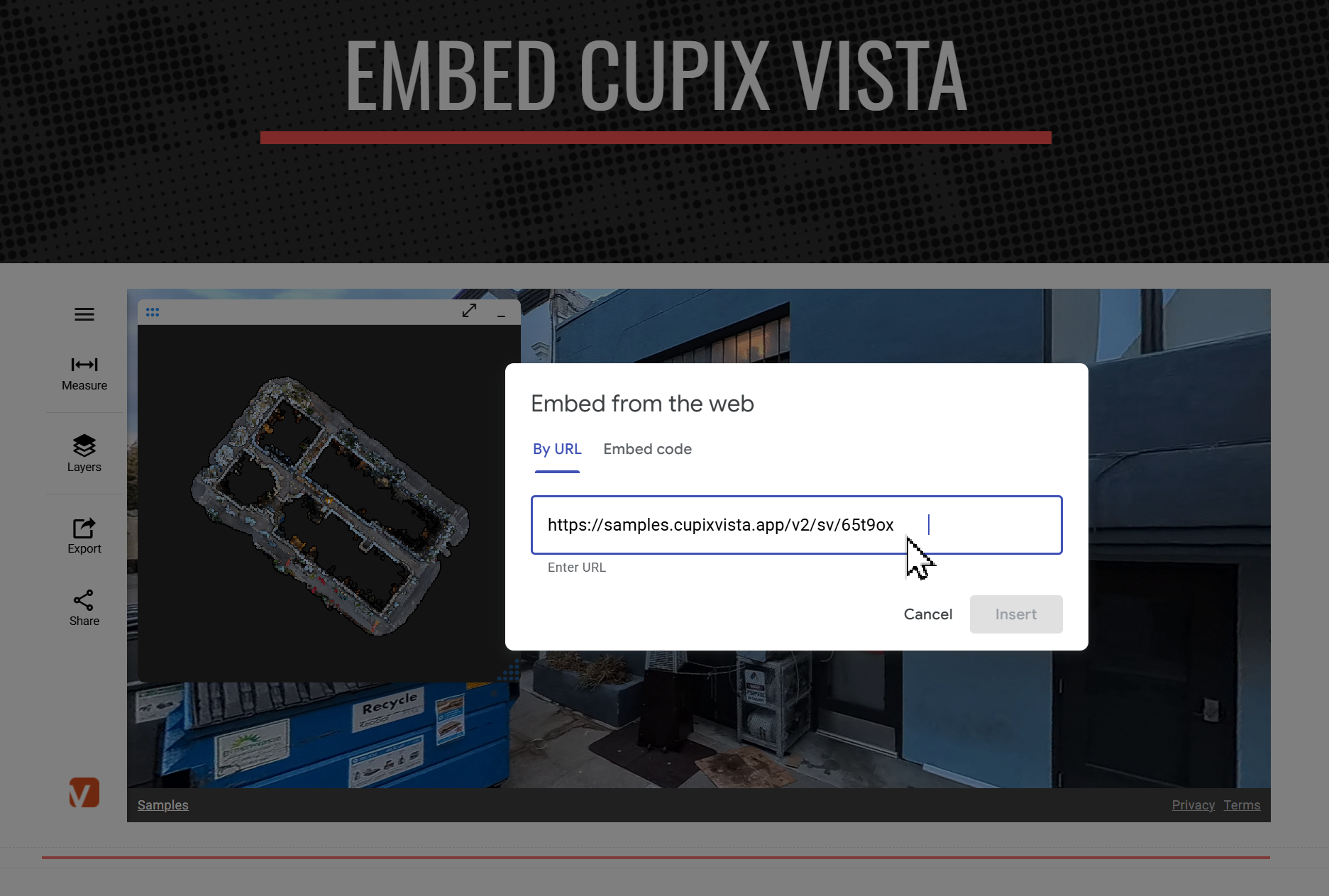

How to Embed a 3D Map Capture into a Website
You can embed the 3D Map Easily into most Website Design Tools by simply pasting the URL or with some very basic HTML. Here is a sample site with an embedded 3D Map:
